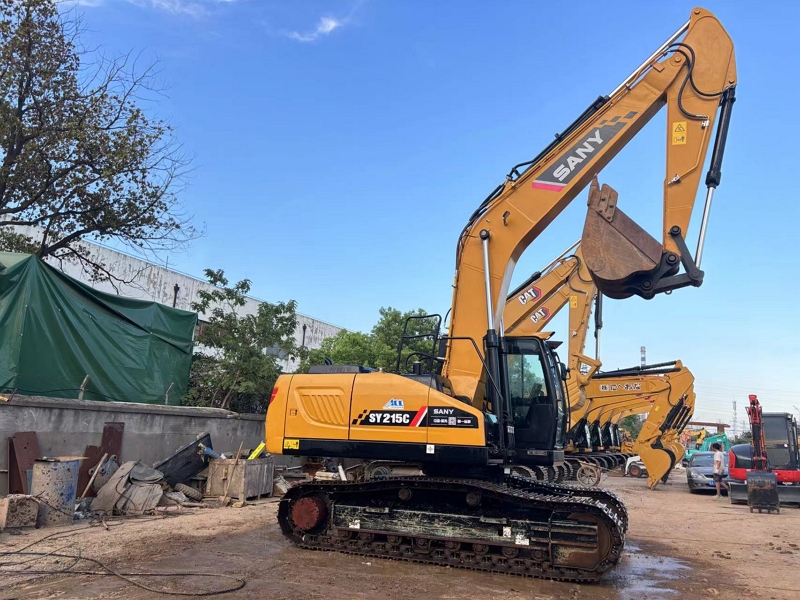

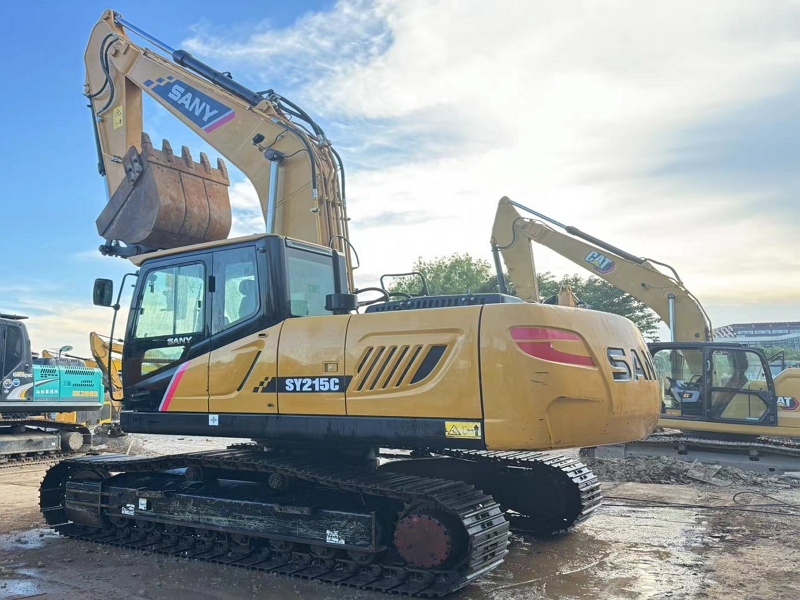

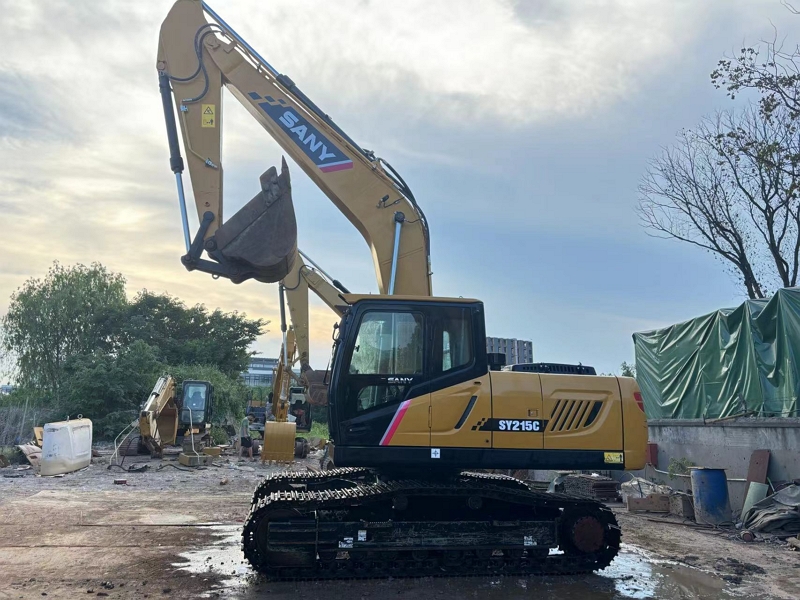

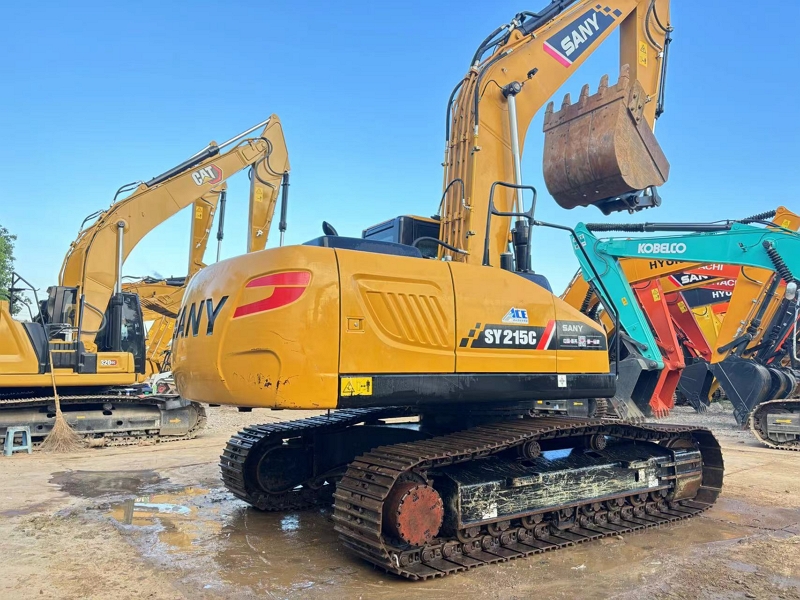

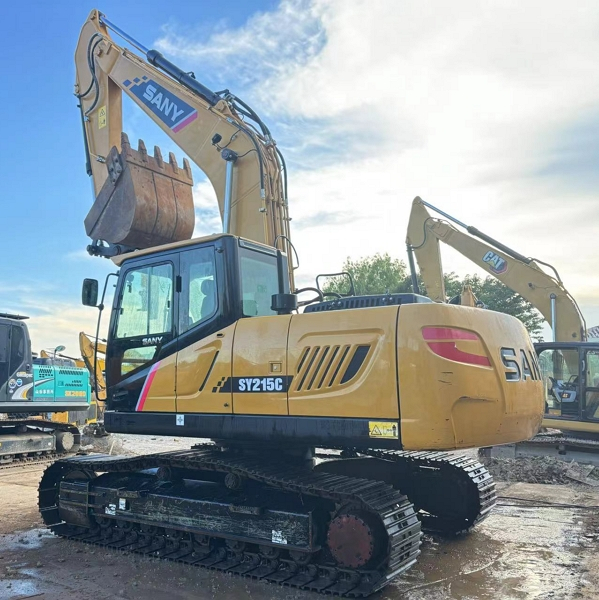

SY215C
Sany
| Availability: | |
|---|---|
|
|
![]() | ![]() |
Advantages
Powerful power: The Sany SY215C excavator is equipped with a powerful engine that provides high power output and can perform excavation work quickly and efficiently.
Stable performance: The excavator has good stability and control performance and can operate in various complex working conditions.
All-round operability: The Sany SY215C excavator adopts advanced hydraulic system and electronic control technology, which can achieve precise control and flexible operation to improve work efficiency.
Comfortable cab: The excavator is equipped with a spacious and comfortable cab, with good vision and audio equipment, providing a comfortable working environment.
Safe and reliable: The Sany SY215C excavator adopts advanced safety technologies and systems, such as anti-rollover system, anti-skid system, etc., which can ensure the safety of the operator and the reliability of the equipment.
Convenient maintenance: The maintenance points of the excavator are reasonably arranged, easy to maintain and maintain, which can reduce the downtime of the equipment and improve the use efficiency.
|
|
![]() | ![]() |
Advantages
Powerful power: The Sany SY215C excavator is equipped with a powerful engine that provides high power output and can perform excavation work quickly and efficiently.
Stable performance: The excavator has good stability and control performance and can operate in various complex working conditions.
All-round operability: The Sany SY215C excavator adopts advanced hydraulic system and electronic control technology, which can achieve precise control and flexible operation to improve work efficiency.
Comfortable cab: The excavator is equipped with a spacious and comfortable cab, with good vision and audio equipment, providing a comfortable working environment.
Safe and reliable: The Sany SY215C excavator adopts advanced safety technologies and systems, such as anti-rollover system, anti-skid system, etc., which can ensure the safety of the operator and the reliability of the equipment.
Convenient maintenance: The maintenance points of the excavator are reasonably arranged, easy to maintain and maintain, which can reduce the downtime of the equipment and improve the use efficiency.
Overall Dimensions
| Boom Length | 5,700 mm |
| Transport Length | 9,728 mm |
| Transport Width | 3,180 mm |
| Transport Height | 3,370 mm |
| Track Gauge | 2,380 mm |
| Ground Clearance (minimum) | 480 mm |
| Tail Swing Radius | 2,890 mm |
| Track Length on Ground | 3,640 mm |
| Track Length | 4,450 mm |
Technical Specifications
| Operating Weight | 23,550 kg |
| Ground Pressure | 36.3 kPa |
| Engine | Cummins QSB6.7 |
| Displacement | 6.7 L |
| Gross Power | 122 kW |
| Swing Motor | Axial Piston with Swing Brake |
| Swing Pressure (maximum) | 27.5 MPa |
| Swing Speed | 10.9 RPM |
| Undercarriage (standard) | Steel Track |
| Track Shoe Width (standard) | 800 mm |
| Track Rollers (per side) | 9 |
| Carrier Rollers (per side) | 2 |
Working Range
| Boom Length | 5,700 mm |
| Stick (Arm) Length | 2,925 mm |
| Maximum Digging Height | 9,180 mm |
| Maximum Dumping Height | 6,670 mm |
| Maximum Digging Depth | 6,600 mm |
| Maximum Vertical Wall Digging Depth | 5,980 mm |
| Maximum Reach at Ground Level | 10,307 mm |
| Minimum Swing Radius | 3,730 mm |
Overall Dimensions
| Boom Length | 5,700 mm |
| Transport Length | 9,728 mm |
| Transport Width | 3,180 mm |
| Transport Height | 3,370 mm |
| Track Gauge | 2,380 mm |
| Ground Clearance (minimum) | 480 mm |
| Tail Swing Radius | 2,890 mm |
| Track Length on Ground | 3,640 mm |
| Track Length | 4,450 mm |
Technical Specifications
| Operating Weight | 23,550 kg |
| Ground Pressure | 36.3 kPa |
| Engine | Cummins QSB6.7 |
| Displacement | 6.7 L |
| Gross Power | 122 kW |
| Swing Motor | Axial Piston with Swing Brake |
| Swing Pressure (maximum) | 27.5 MPa |
| Swing Speed | 10.9 RPM |
| Undercarriage (standard) | Steel Track |
| Track Shoe Width (standard) | 800 mm |
| Track Rollers (per side) | 9 |
| Carrier Rollers (per side) | 2 |
Working Range
| Boom Length | 5,700 mm |
| Stick (Arm) Length | 2,925 mm |
| Maximum Digging Height | 9,180 mm |
| Maximum Dumping Height | 6,670 mm |
| Maximum Digging Depth | 6,600 mm |
| Maximum Vertical Wall Digging Depth | 5,980 mm |
| Maximum Reach at Ground Level | 10,307 mm |
| Minimum Swing Radius | 3,730 mm |
