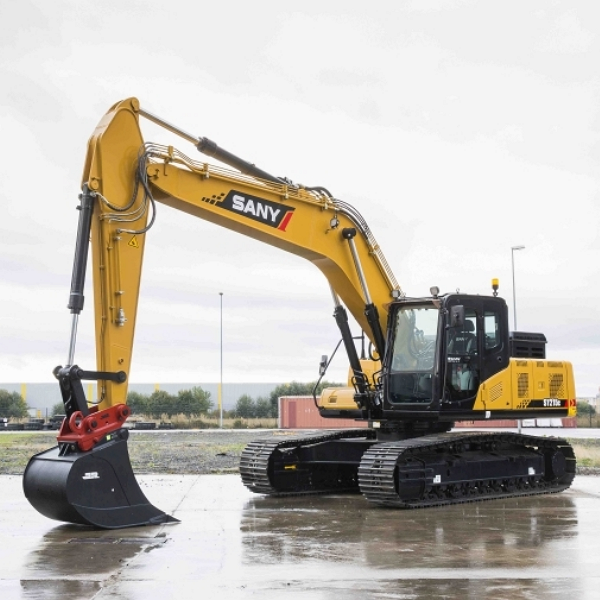

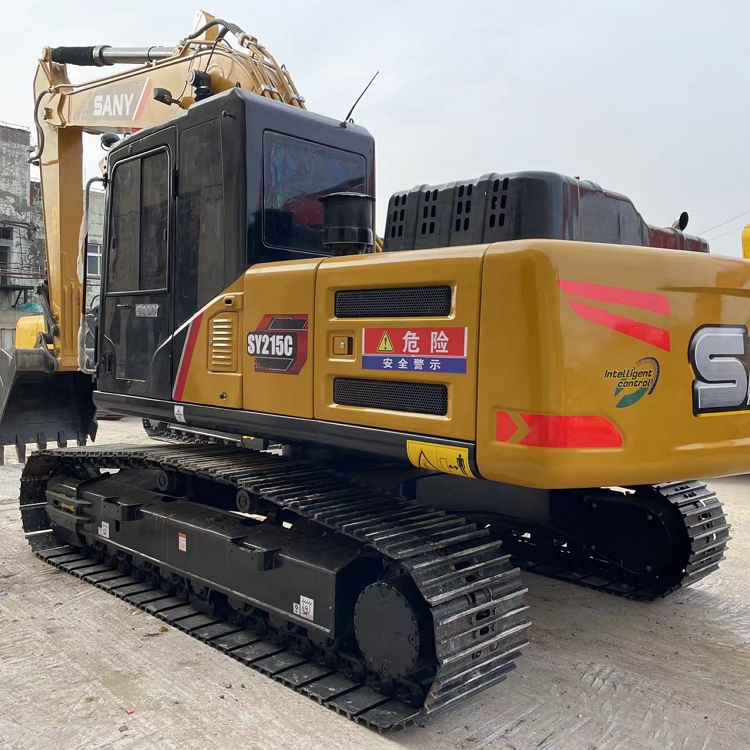

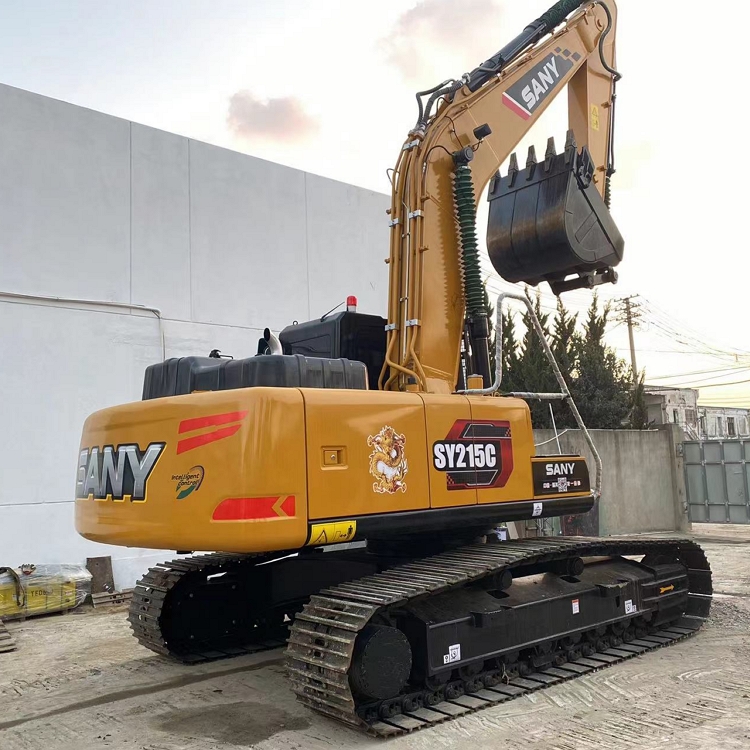

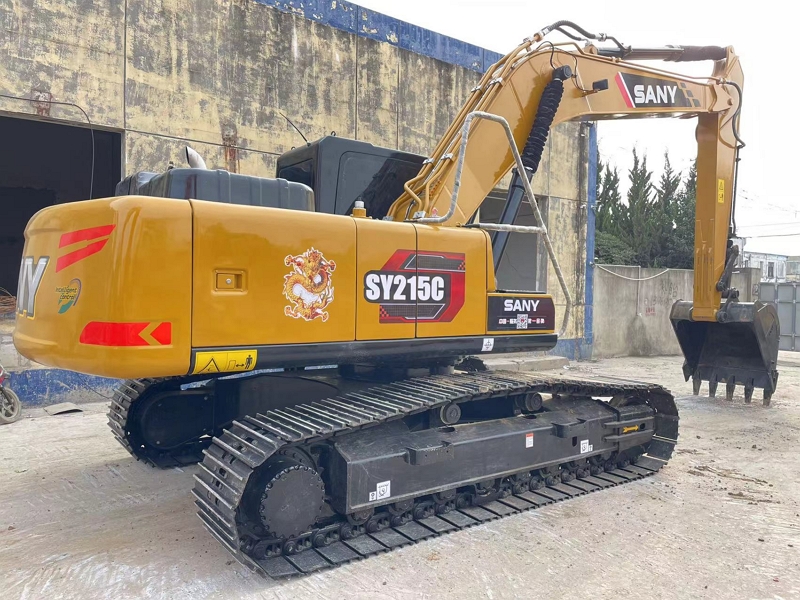

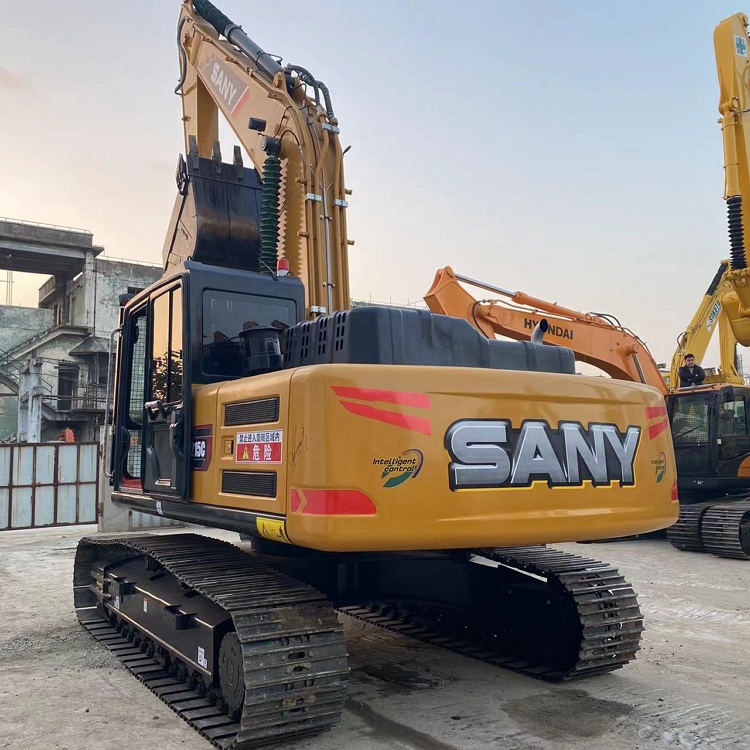

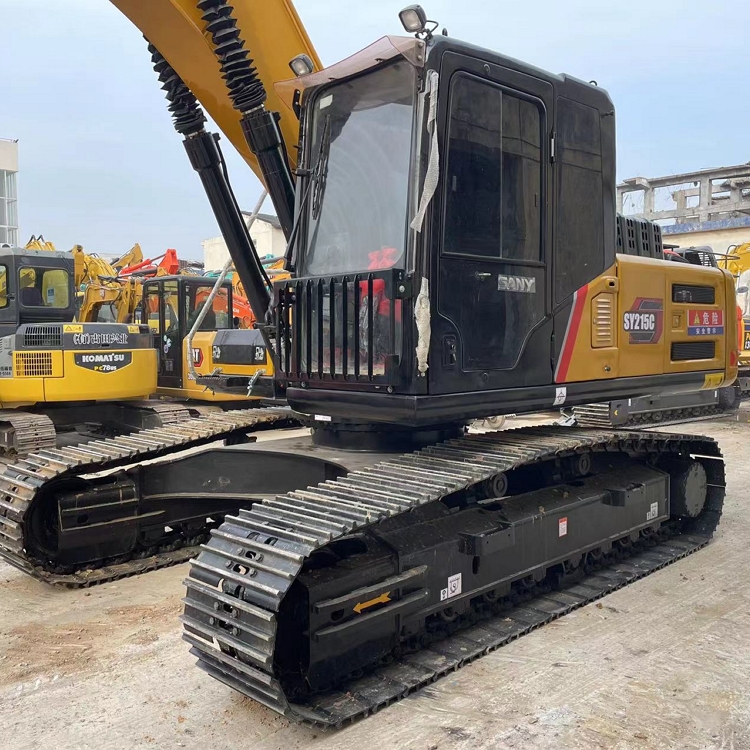

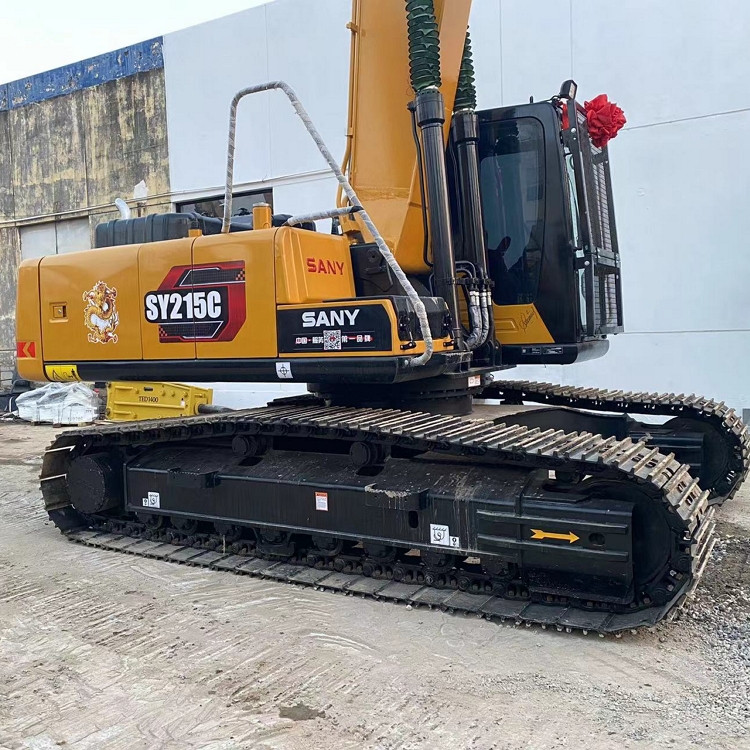

SY215C
Sany
| Availability: | |
|---|---|
![]() | ![]() |
![]() |
|
Advantages
High-efficiency performance: The SY215C excavator is equipped with a high-performance engine and advanced hydraulic system, with excellent excavation ability and work efficiency.
Stable and reliable: The excavator adopts a stable and reliable structural design and is made of high-quality materials. It has good anti-seismic and anti-wear performance and can work in harsh working environments.
Versatility: The excavator can switch between multiple operating modes according to different working conditions, and can be used for various engineering operations such as excavation, loading, and leveling.
Convenient maintenance: The excavator adopts a modular design, which is easy to repair and maintain, reducing maintenance costs and downtime.
![]() | ![]() |
![]() |
|
Advantages
High-efficiency performance: The SY215C excavator is equipped with a high-performance engine and advanced hydraulic system, with excellent excavation ability and work efficiency.
Stable and reliable: The excavator adopts a stable and reliable structural design and is made of high-quality materials. It has good anti-seismic and anti-wear performance and can work in harsh working environments.
Versatility: The excavator can switch between multiple operating modes according to different working conditions, and can be used for various engineering operations such as excavation, loading, and leveling.
Convenient maintenance: The excavator adopts a modular design, which is easy to repair and maintain, reducing maintenance costs and downtime.
SPECIFICATIONS
Bucket Capacity | 1.1 m³ |
| Machine Operating Weight | 21900 Kg |
| Tonnage | 21 Tons |
| Manufacturer | Domestic |
| Power | Traditional power |
Bucket | Backhoe |
PERFORMANCE
| Arm Digging Force | 103 kn |
| Ground Pressure | 47.4 kpa |
| Slewing Speed | 11 rpm |
| Travel Speed | 5.4/3.3 Km/h |
| Bucket Digging Force | 138 kn |
POWER SYSTEM

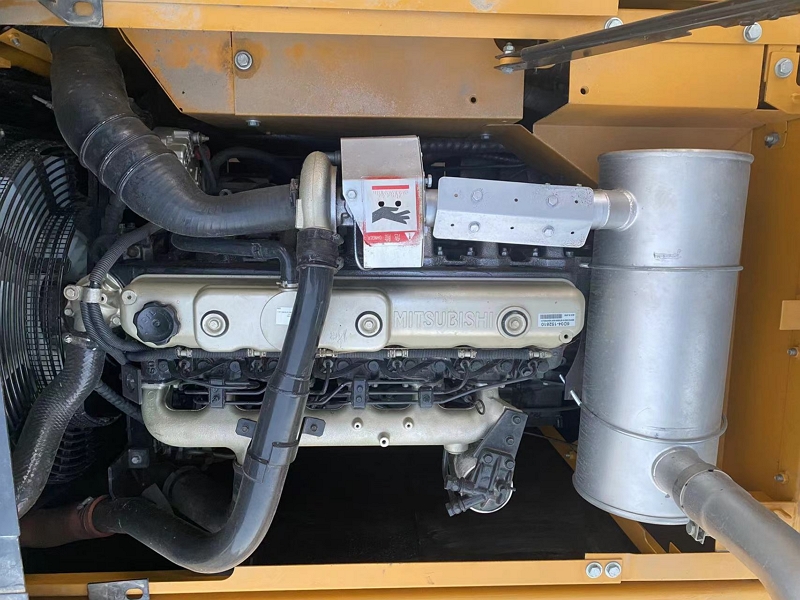

| Engine model | Mitsubishi 4M50 |
| Rated power | 118/2000 kw/rpm |
| Maximum torque | 580/ 1600 N.m |
| Cooling method | Water cooling |
| Number of cylinders | 4 pcs |
OIL CAPACITY
| Fuel tank | 390 L |
| Hydraulic oil tank | 239 L |
| Engine oil change amount | 22 L |
OPERATING RANGE
Maximum Digging Radius | 10280 mm |
| Maximum Digging Depth | 6600 mm |
| Maximum Digging Height | 9600 mm |
| Maximum Unloading Height | 6730 mm |
