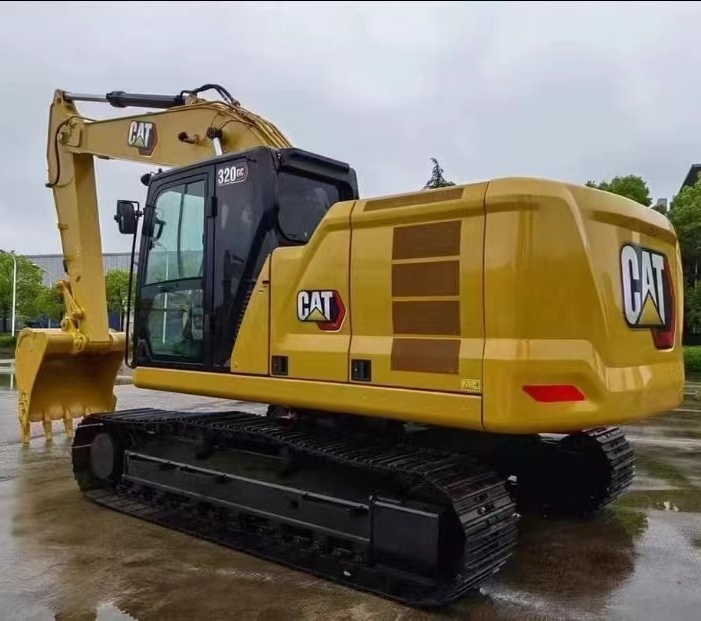

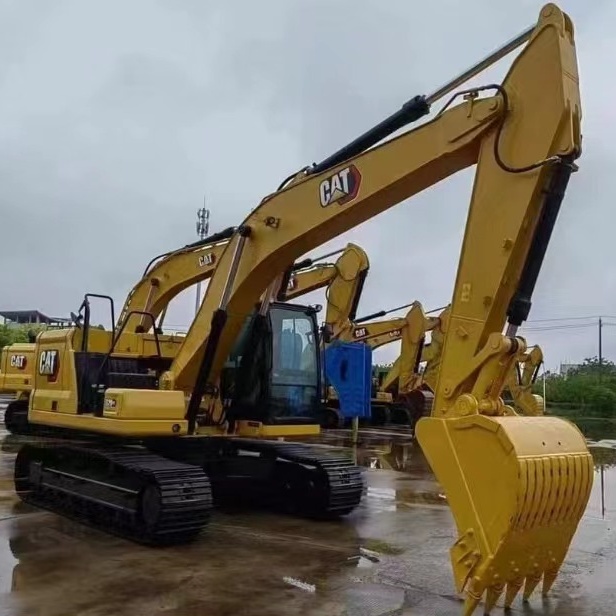

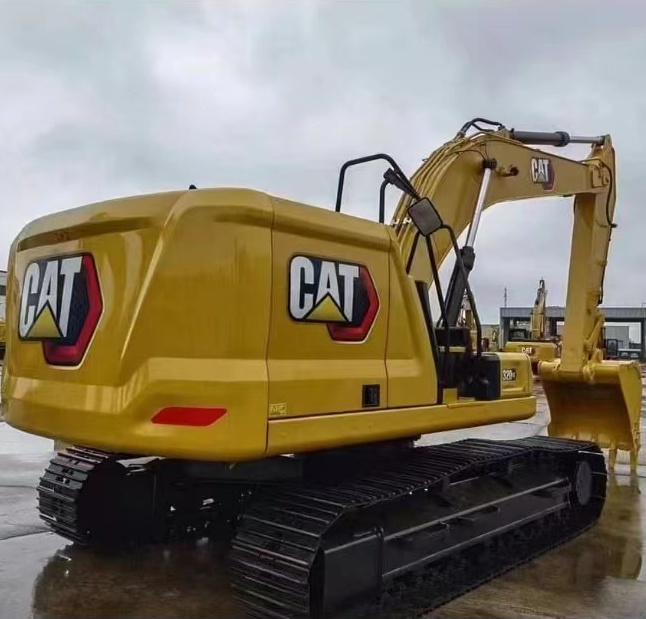

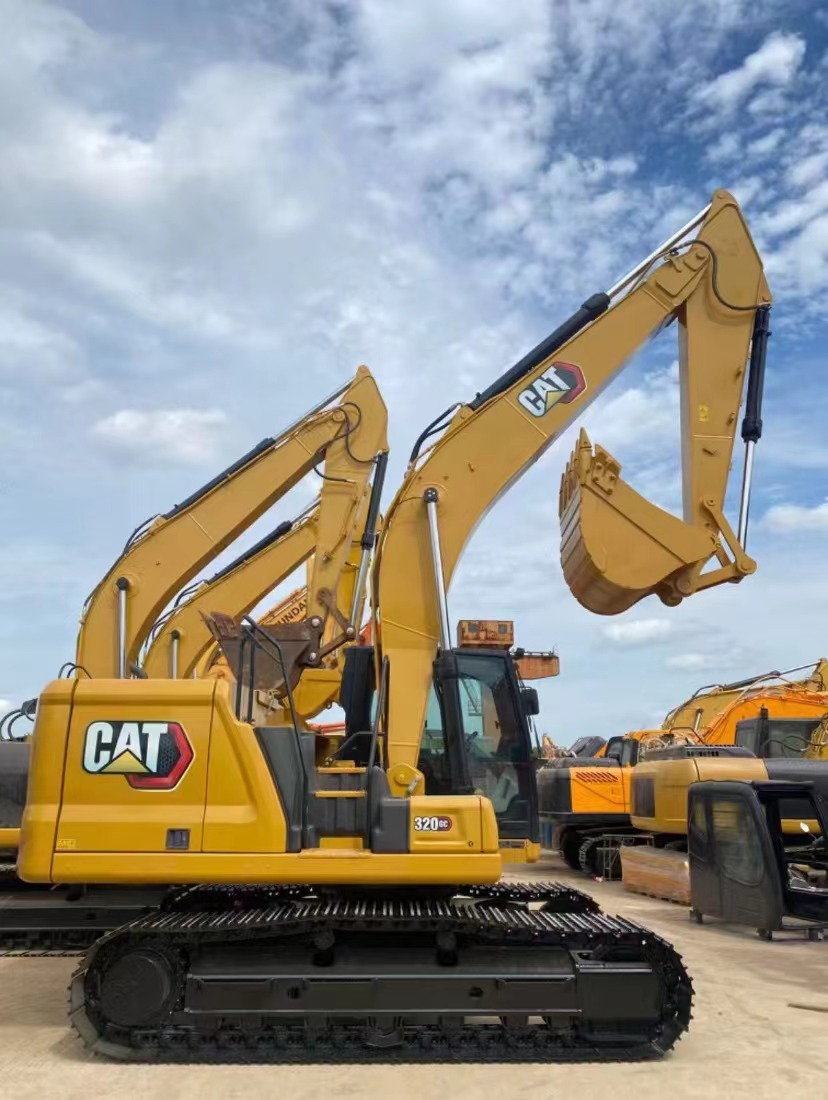

Cat Second Hand 320GC Hot Sale And Good Condition Crawler Excavator Made in Japan

The Cat320GC used excavator offers reliable performance. With its durable build and efficient operation, it's a great choice for construction projects. Features advanced technology for enhanced productivity. A cost-effective option with good condition. Ideal for various earthmoving tasks.

Model:
320GC
Brand:
CAT

Availability:



Inquire Add to Basket

Advantages

Durability:

Constructed with high-quality materials, the Cat320GC is built to withstand the rigors of heavy-duty construction work. Its robust frame and components can endure harsh working conditions, ensuring a long service life even in second-hand condition.

Efficiency:

This excavator is designed for high productivity. It offers fast cycle times and powerful digging forces, allowing you to complete tasks quickly. The advanced hydraulic system provides smooth and precise control, enabling efficient operation and reducing downtime.

Advanced Technology:

Equipped with state-of-the-art technology, the Cat320GC offers features such as intelligent control systems, fuel-efficient engines, and operator comfort enhancements. These technologies not only improve performance but also reduce operating costs and environmental impact.

Cost-Effectiveness:

Buying a used Cat320GC excavator is a cost-effective option compared to purchasing a new machine. You can get a reliable and capable excavator at a significantly lower price, saving you money while still meeting your construction needs.

Versatility:

The Cat320GC is suitable for a wide range of applications, including excavation, grading, demolition, and material handling. Its versatility makes it an ideal choice for various construction projects, from small-scale jobs to large-scale infrastructure developments.

ENGINE

Net Power	145 hp
Engine Model	C4.4
Displacement	269 in³
Stroke	5 in
Bore	4 in
Emissions	Meets Brazilian MAR-1 emission standards equivalent to US EPA Tier3/ EU Stage IIIA
Note（1）	Net power advertised is the power provided at the flywheel at 2000 rpm when the engine is equipped with a fan, intake, exhaust and alternator. The nominal power is tested in accordance with the specified standards in effect at the time of manufacture.
Note (2)	¹Cat engines are compatible with diesel blended with the following low-carbon intensity fuels*: up to 100% biodiesel FAME (Fatty Acid Methyl Ester) or up to 100% renewable diesel, HVO (Hydrotreated Vegetable Oil) and GTL (Gas-to-liquid) fuels. For successful app, see the guide. Check with your Cat dealer or consult the Caterpillar Machine Oil Recommendations (SEBU6250) for details. For blends with more than 20% biodiesel, consult your Cat dealer. *The tail air greenhouse gas emissions of low-carbon intensity fuels are essentially the same as those of conventional fuels.

WEIGHTS

Operating Weight	45000 lb
Note	Medium undercarriage, reach boom, R2.9 (9'6") stick, general duty (GD) 1.0 m³ (1.31 yd³) bucket, 600 mm (24 in) triple grouser track shoes and 3.7 mt (8200 lb) counterweight.

DIMENSIONS

Swing Arm	Reach 5.7 m (18'8")
Bucket Rod	Reach 2.9 m (9'6")
Bucket	1.0 m³（1.31 yd³）
Shipping Height – Cab Top	9.9 ft
Handrail Height	9.8 ft
Shipment Length	31.3 ft
Tail Swing Radius	9.3 ft
Counterweight Clearance	3.4 ft
Ground Clearance	1.5 ft
Track Length	13.9 ft
Roller Center Spacing	11.3 ft
Track Gauge	7.8 ft
Shipping Width	9.8 ft

ROTATING MECHANISM

Turning Speed	11.3 r/min
Maximum Turning Torque	54.900 lb/ft

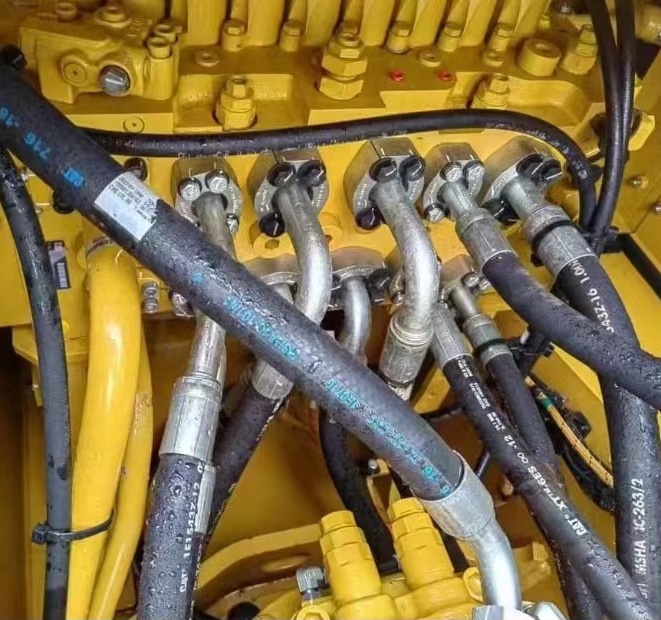

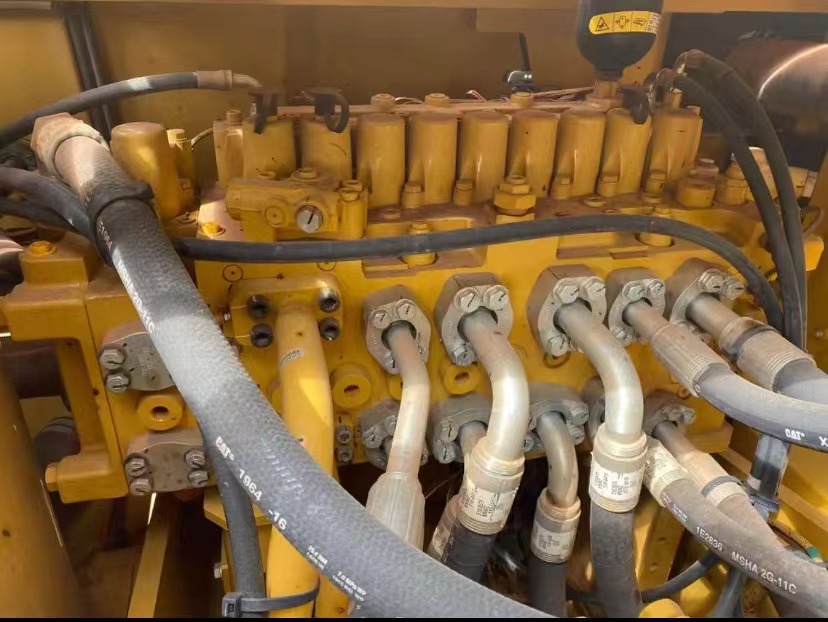

HYDRAULIC SYSTEM

Main System – Maximum Flow Rate	429 l/min (113 gal/min)
Maximum Pressure - Equipment	5.075 psi
Maximum Pressure - Travel	4.974 psi
Maximum Pressure - Rotation	3.625 psi

WORKING RANGE AND FORCE

Maximum Digging Depth	21.8 ft
Boom	Reach 5.7 m (18'8")
Sticks	Reach 2.9 m (9'6")
Buckets	1.0 m³（1.31 yd³）
Maximum Reach On The Ground	32.1 ft
Maximum Cut Height	31 ft
Maximum Loading Height	21.6ft
Maximum Cut Depth Of 2440 mm (8 ft) Flat Bottom	21.2 ft
Maximum Vertical Wall Digging Depth	21.2 ft
Bucket Breakout Force - ISO	29.007 lbf
Stick Breakout Force - ISO	22.301 lbf

Determine Your Needs

Before buying a used excavator, you first need to clarify your needs. Consider the size of the work site, the required digging depth, the soil type, and other specific work requirements. These factors will help you choose the right model and specifications. Also consider the brand of the excavator.
Check The Use Of The Machine

Ask the seller how long the excavator has been used (number of working hours), whether it has been regularly maintained, whether it has a history of major repairs, etc. If possible, ask to see the repair and maintenance records. Pay special attention to the condition of the machine's hydraulic system, engine, chassis, and working device, as these are the parts of the excavator that are most susceptible to wear.
Conduct On-Site Tests

It is very important to operate the excavator yourself and test it before purchasing. Start the machine and check whether the engine starts smoothly, whether it is flexible to operate, whether the hydraulic system is working properly, and whether there is any abnormal noise. Also check the operating comfort of the excavator and ensure that the control system is responsive and precise.
Pay Attention To Price And Cost Performance

The price of a used excavator may vary depending on the brand, model, age and working hours. It is recommended to compare prices from multiple sources to understand the market situation and avoid purchasing machines that are overpriced or of poor quality. In addition, the subsequent maintenance and servicing costs should also be considered to ensure the overall cost performance.
Choose A Reliable Seller

Choosing a reputable seller or dealer to buy a used excavator can reduce the risk of purchasing a machine. Sellers with good reputation usually provide more detailed machine information and even some after-sales guarantee services. Before the transaction, you can evaluate the seller's reliability by checking the seller's reviews or communicating with other buyers.
