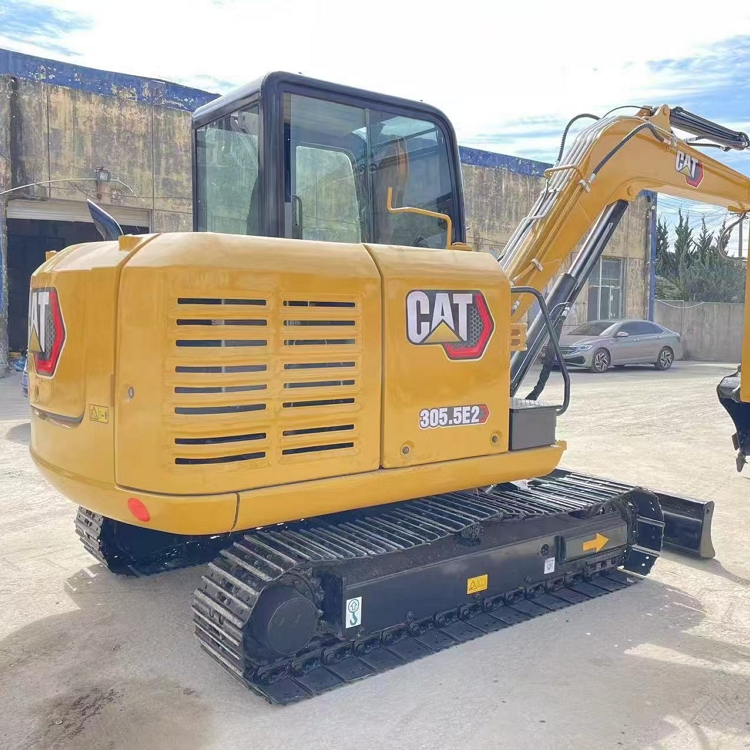

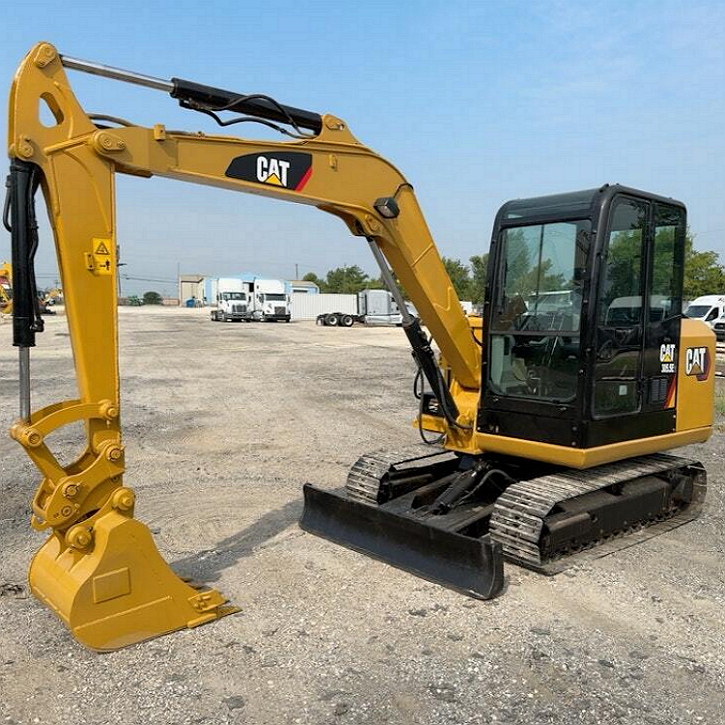

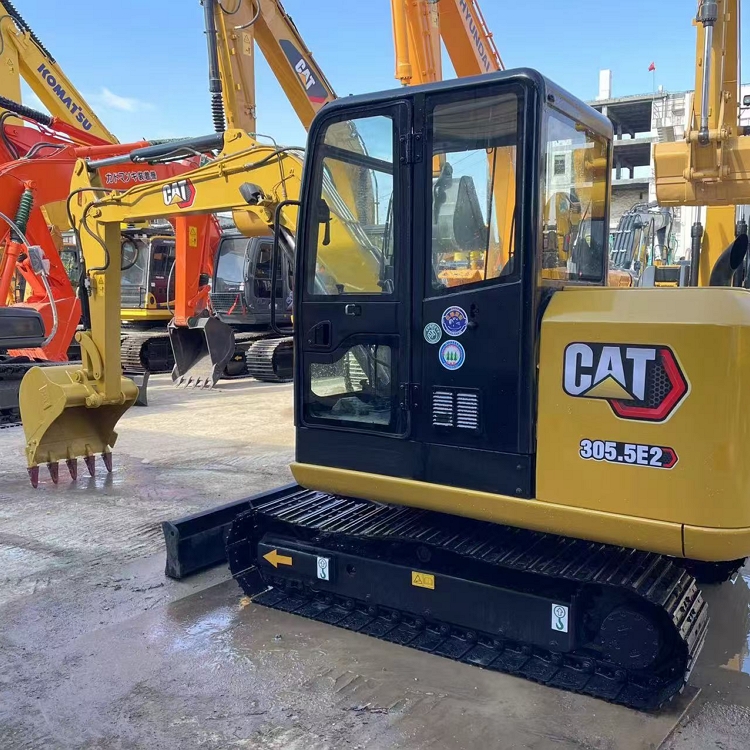

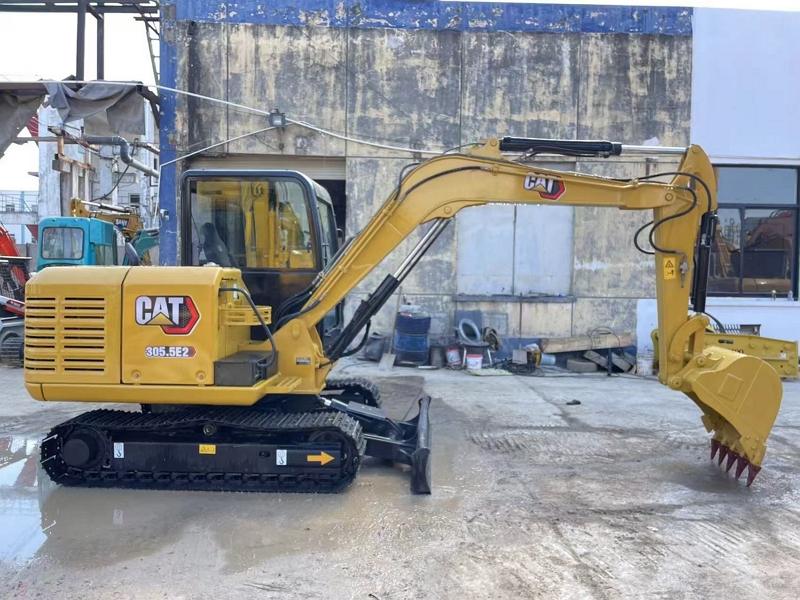

Cat 305.5 E2 Second Hand Small 5 Tons Hydraulic Excavator Japanese Original from China manufacturer

Advantages

Small and portable: The Cat 305.5E2 is a small hydraulic excavator with a relatively small size, suitable for small workspaces and narrow roads.
Flexible operation: The spiral rotating device allows the machine to rotate 360 degrees in a small space, making it easy to dig and dump materials, and can easily cope with various work scenarios.
High efficiency and energy saving: This model of excavator is equipped with Caterpillar's advanced hydraulic system, providing high-efficiency power and operating performance, while saving fuel and reducing operating costs.
High-quality engineering quality: Design and manufacturing follow strict quality control standards, with good reliability and durability.

SPECIFICATIONS

Bucket Capacity	1.1 m³
Machine Operating Weight	5400 Kg
Tonnage	5 Tons
Manufacturer	Domestic
Power	Traditional power
Bucket	Backhoe

PERFORMANCE

Slewing speed	10.5 min-1 rpm
Slewing torque	13.9 N·m
Travel speed	4.3/2.8 Km/h
Gradability	50 %
Bucket digging force	35.0 kN
Arm digging force	27.2 kN
Maximum traction force	138 kN

POWER SYSTEM

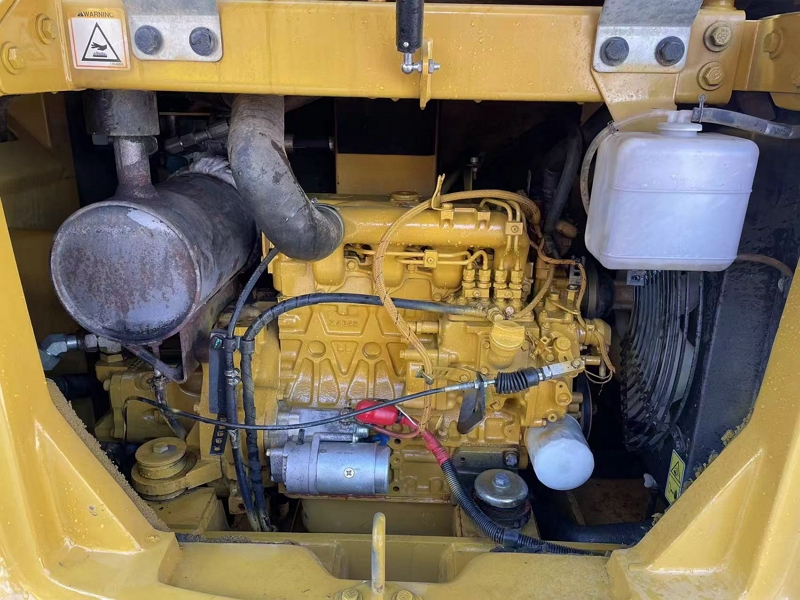

Engine model	Cat C2.4 DI
Rated power	34.1 kw/rpm
Displacement	2.4 L
Bore × stroke	87.0*102.4 mm

HYDRAULIC SYSTEM

Main pump type	load-sensing hydraulic system with variable displacement piston pump
Main pump maximum flow	140.0 l/min

OIL CAPACITY

Fuel tank	78 L
Hydraulic oil tank	58 L
Engine oil change amount	9.5 L

MAIN DIMENSIONS

Total transport length	5765 mm
Total transport width	1950 mm
Total transport height	2540 mm
Total track length	2440 mm
Track shoe width	400 mm
Track gauge	1550 mm
Minimum ground clearance	628 mm
Center distance of supporting wheels	1920 mm
Rear end turning radius	1580 mm

Determine Your Needs

Before buying a used excavator, you first need to clarify your needs. Consider the size of the work site, the required digging depth, the soil type, and other specific work requirements. These factors will help you choose the right model and specifications. Also consider the brand of the excavator.
Check The Use Of The Machine

Ask the seller how long the excavator has been used (number of working hours), whether it has been regularly maintained, whether it has a history of major repairs, etc. If possible, ask to see the repair and maintenance records. Pay special attention to the condition of the machine's hydraulic system, engine, chassis, and working device, as these are the parts of the excavator that are most susceptible to wear.
Conduct On-Site Tests

It is very important to operate the excavator yourself and test it before purchasing. Start the machine and check whether the engine starts smoothly, whether it is flexible to operate, whether the hydraulic system is working properly, and whether there is any abnormal noise. Also check the operating comfort of the excavator and ensure that the control system is responsive and precise.
Pay Attention To Price And Cost Performance

The price of a used excavator may vary depending on the brand, model, age and working hours. It is recommended to compare prices from multiple sources to understand the market situation and avoid purchasing machines that are overpriced or of poor quality. In addition, the subsequent maintenance and servicing costs should also be considered to ensure the overall cost performance.
Choose A Reliable Seller

Choosing a reputable seller or dealer to buy a used excavator can reduce the risk of purchasing a machine. Sellers with good reputation usually provide more detailed machine information and even some after-sales guarantee services. Before the transaction, you can evaluate the seller's reliability by checking the seller's reviews or communicating with other buyers.

Safe Purchase

To ensure the safety of customers when purchasing used excavators, we provide the following services:

1. Comprehensive mechanical inspection
2. History review
3. Performance test
4. Third-party certification
5. Warranty service
6. Transparent price evaluation
7. After-sales support

→

Secure Payment Platform

We work with well-known third-party payment platforms to ensure that all transactions are conducted through secure encrypted channels to prevent payment information leakage and financial risks.

Transaction Record Preservation

We will save all transaction records, including contracts, payment vouchers, etc., for customers to query at any time.

Contract Protection

Before the customer pays, we will sign a detailed purchase contract with the customer to clarify the rights and obligations of both parties and ensure the legal rights and interests of the customer during the payment process.

FAQs

What are the key points to pay attention to when buying a used excavator?

The working hours of the machine, the condition of the engine, the performance of the hydraulic system, the degree of wear of the chassis and crawler, and whether there are maintenance records. At the same time, it is best to conduct on-site inspections and test operations.
What factors affect the price of a used excavator?

Mainly affected by the brand, model, working hours, machine condition, maintenance records, and market supply and demand.
Is the maintenance cost of a used excavator higher than that of a new machine?

It usually depends on the age of the machine, the working hours, and the maintenance. Older machines may require more frequent maintenance and higher repair costs.
Do you need to consider the brand when buying a used excavator?

Well-known brands usually have better quality control, parts supply, and after-sales service. Choosing a used excavator from a reliable brand can reduce the difficulty of future maintenance and repairs.
Is a used excavator suitable for small engineering projects?

Used excavators are very suitable for small engineering projects with limited budgets. By choosing used equipment in good condition, you can get efficient construction tools at a lower cost to meet engineering needs.
