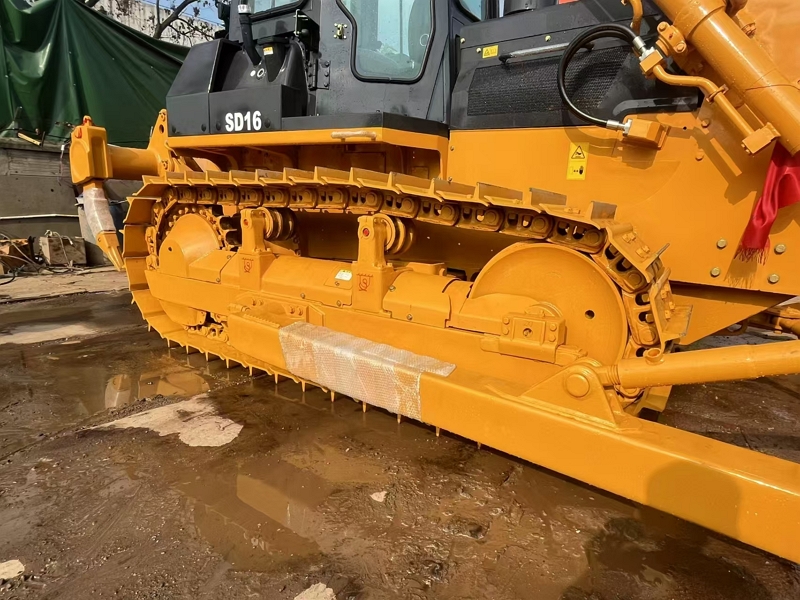

SD16
Shantui
Availability: | |
---|---|
![]() | ![]() |
![]() | ![]() |
Advantages
1. Powerful performance for effective earthmoving.
2. Durable construction for long service life.
3. Easy operation and maintenance.
4. Cost-effective option compared to new ones.
5. Suitable for various construction tasks.
![]() | ![]() |
![]() | ![]() |
Advantages
1. Powerful performance for effective earthmoving.
2. Durable construction for long service life.
3. Easy operation and maintenance.
4. Cost-effective option compared to new ones.
5. Suitable for various construction tasks.
PRODUCT SPECIFICATION
Overall weight(kg) | 16400 |
Working Hour | 0-800h |
Condition | 95%New |
Certification | CE/EPA |
Engine brand | WEICHAI WD10G178E25 |
Rated power/rated speed(kW/rpm) | 131/1850 |
Machine external dimensions(mm) | 5140*3455*3032 |
Track center distance(mm) | 1880 |
Track shoe width(mm) | 510/560/610 |
Ground contact length(mm) | 2430 |
Fuel tank capacity(L) | 315 |
Blade type | Straight tilting/U-shaped Blade |
Blade capacity(m³) | 3.2/4.8 |
Emissions (Indicated as per international standards) | Eu stageⅡ |
Ground pressure (kPa) | 58 |
Ripper type | Three-tooth ripper |
Ripping depth (mm) | 570 |
PRODUCT SPECIFICATION
Overall weight(kg) | 16400 |
Working Hour | 0-800h |
Condition | 95%New |
Certification | CE/EPA |
Engine brand | WEICHAI WD10G178E25 |
Rated power/rated speed(kW/rpm) | 131/1850 |
Machine external dimensions(mm) | 5140*3455*3032 |
Track center distance(mm) | 1880 |
Track shoe width(mm) | 510/560/610 |
Ground contact length(mm) | 2430 |
Fuel tank capacity(L) | 315 |
Blade type | Straight tilting/U-shaped Blade |
Blade capacity(m³) | 3.2/4.8 |
Emissions (Indicated as per international standards) | Eu stageⅡ |
Ground pressure (kPa) | 58 |
Ripper type | Three-tooth ripper |
Ripping depth (mm) | 570 |
